What Is a Control Valve? Differences Between Modulating and On/Off Control Valves

What Is a Control Valve? Differences Between Modulating and On/Off Control Valves

Proper control of steam, water, air, and various process fluids in industrial plants is essential for system efficiency, safety, and production quality. Control valves are among the most important components used to achieve this control.

Control valves are a category of industrial valves used to regulate the flow rate, pressure, or temperature of fluids passing through a process line. They are widely used in steam lines, heat exchanger systems, process heating applications, food, textile, chemical, and energy facilities.

What Is a Control Valve?

A control valve is a type of valve that regulates fluid flow according to a signal received from the system. This signal may come from an automation system, PLC, temperature controller, or pressure sensor.

Based on the incoming signal, the valve opens, closes, or operates at a specific opening percentage. This allows the amount of fluid flowing through the system to be controlled according to process requirements.

Control valves can generally be divided into two main categories:

• Modulating Control Valves

• On/Off Control Valves

Although these two valve types serve similar purposes, their operating principles and applications are different.

What Is a Modulating Control Valve?

A modulating control valve is a type of valve that can regulate fluid flow at different levels rather than simply operating in a fully open or fully closed position. Depending on the process requirements, the valve can operate at different opening positions between 0% and 100%.

For example, when controlling temperature in a steam line, the valve can modulate the steam flow according to the amount of steam required by the system. This enables more stable and precise temperature control.

Modulating control valves are commonly used in:

• Steam flow control

• Temperature control

• Pressure control

• Heat exchanger inlets

• Process heating systems

• Lines requiring precise flow control

This type of valve provides high efficiency, particularly in systems where the process needs to be continuously regulated.

What Is an On/Off Control Valve?

An On/Off control valve is a type of valve that either fully opens or fully closes the fluid passage. These valves are not intended for precise control at intermediate positions; instead, they are used to start or stop the flow.

In other words, the valve is either fully open or fully closed.

On/Off control valves are commonly used in:

• Line opening and closing applications

• Tank filling and draining systems

• Basic automation lines

• Flow shut-off applications

• Steam, water, air, and process lines

These valves provide practical and reliable solutions for applications where precise flow control is not required.

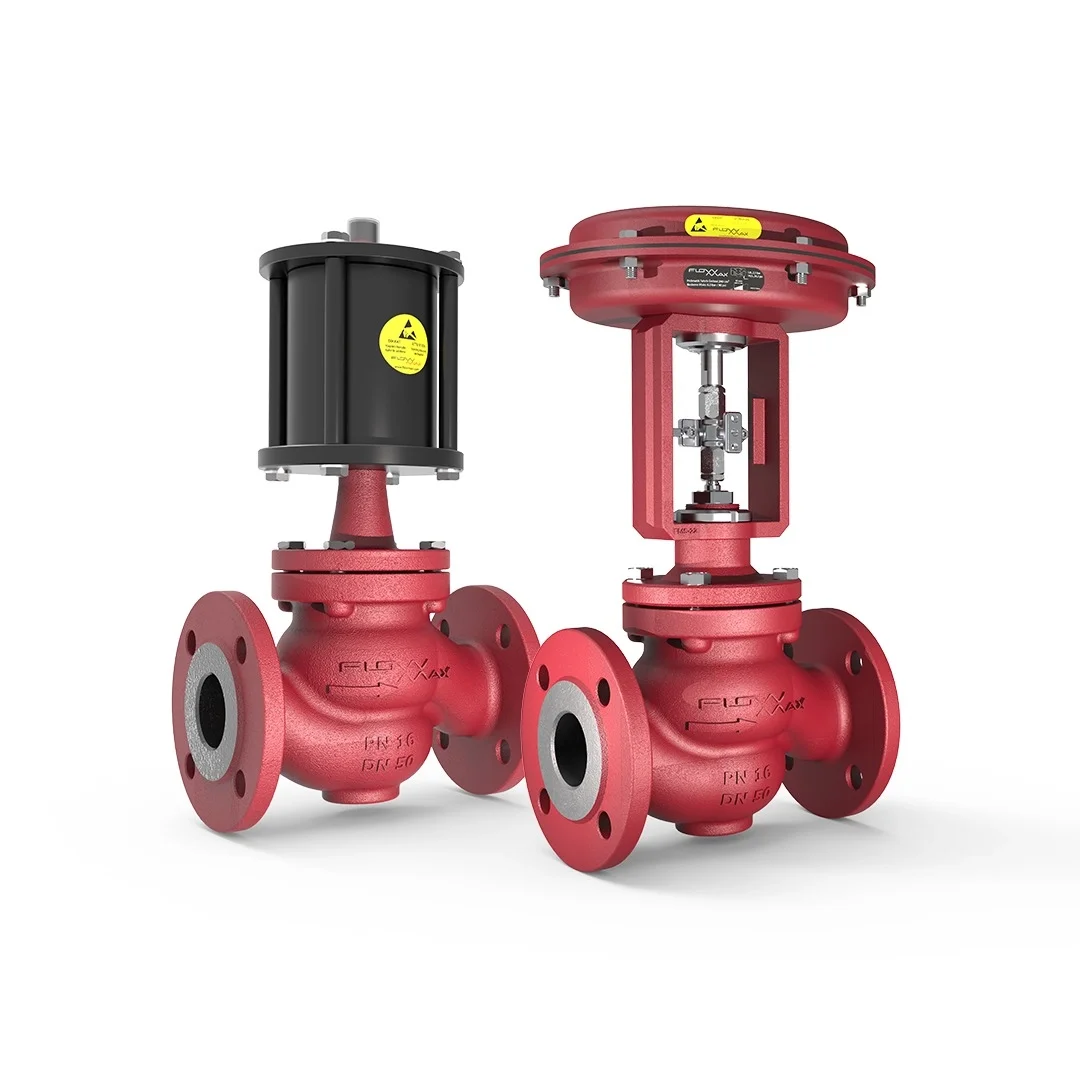

What Is the Difference Between Modulating and On/Off Control Valves?

The main difference between modulating and On/Off control valves is their operating principle.

A modulating control valve adjusts the flow gradually. The valve opening changes according to the process requirements, allowing flow rate, pressure, or temperature to be controlled more precisely.

An On/Off control valve, on the other hand, operates in only two positions: fully open or fully closed. The flow is either fully available or completely shut off.

Therefore, modulating control valves are preferred in systems where parameters such as temperature, pressure, or flow rate need to be continuously controlled. On/Off control valves are more suitable for applications where the flow only needs to be started or stopped.

Why Is Choosing the Right Control Valve Important?

Selecting the right control valve is critical for efficient and safe process operation. An incorrectly selected valve can lead to unstable system operation, energy losses, reduced control accuracy, and shortened equipment service life.

When selecting a control valve, considering only the pipe size is not sufficient. The fluid type, flow rate, pressure, temperature, connection type, and process requirements should all be evaluated together.

Therefore, control valve selection should be carried out according to the actual process conditions.

Flowmaxi Control Valve Solutions

At Flowmaxi, we manufacture modulating control valves and On/Off control valves for industrial plants. With solutions suitable for steam, water, air, and various process fluids, we contribute to the safe, efficient, and sustainable operation of industrial facilities.

Thanks to our local manufacturing capabilities, we provide fast delivery, technical support, and production solutions tailored to specific requirements.

If you want to select the right control valve for your process, you can contact our technical team for support or perform a preliminary control valve selection using the Flowmaxi Valve Sizing Application.

Conclusion

Control valves are among the fundamental components of fluid control systems in industrial plants. While modulating control valves are used for precise process control, On/Off control valves are preferred for applications where the flow needs to be simply started or stopped.

Selecting the right valve type is essential for energy efficiency, process safety, and overall system performance.
